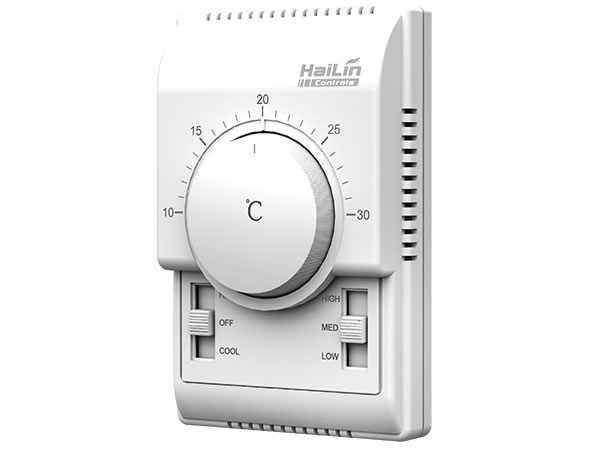

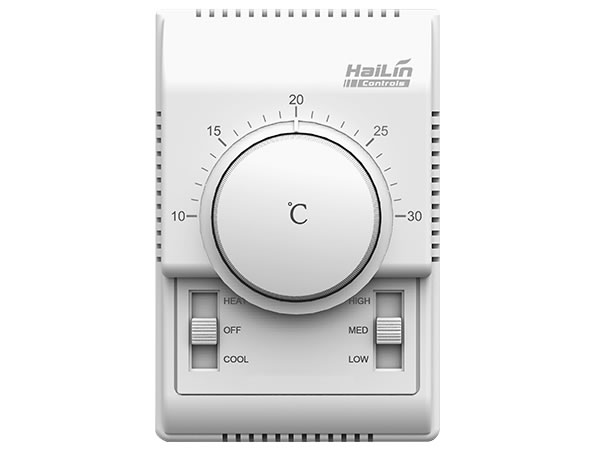

HL107 Dial Thermostat

This product has been discontinued and removed from our shelves.

Thermostat dial/ Temperature Controller/ Fan Coil Controller

Our HL107 dial thermostats are designed for simple control over room temperatures in industrial, commercial and residential structures. The basic design features highly precise control over fan coil units (with or without motorized valve), dampers, diffusers etc.
The dial itself controls the valve to reach the setpoint, providing excellent accuracy when it comes to temperature setting and control.

Features
● Manual switch to select work status and a dial to set the temperature.
● Fan speed selection
● Wall mounted
● For 2-pipe or 4-pipe units

Note
● HL107Y can only perform open and close functions for dampers
● When the temperature reaches the set-point, the thermostat will close the valve but keep the fan running for the DA model. The thermostat will close the valve and stop the fan running for DB model

Specifications
● Temperature Sensor: NTC
● Accuracy: ±1.5℃
● Set-point Range:10~30℃
● Power Supply:AC220V ±10% 50/60Hz
● Rated Power:AC220V 1A(resistive); AC220V 0.5A(inductive)
● Self Power:<2W
● Housing: PC+ABS(fire retardant)
● Dimensions:85×130×43 mm(W×H×D)
● Installation: standard 86 box surface mounting
● Hole Pitch:60 mm (standard)or 83mm
● Wiring:0.5-2.5mm2
● Ambient Conditions:0~45℃,5~95% RH (non-condensate)
