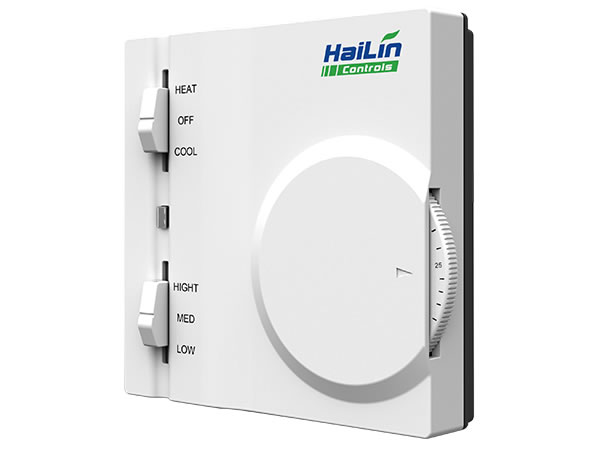

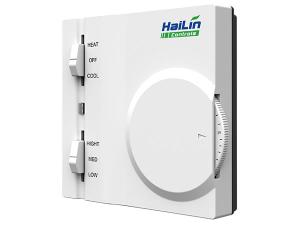

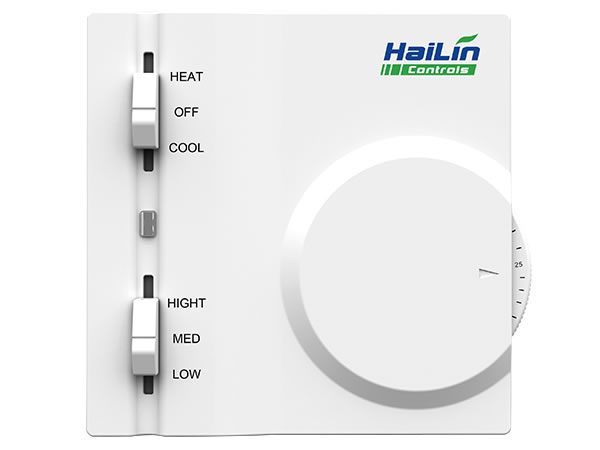

Temperature Controller/ Fan Coil Thermostat/ Fan Coil Unit
Our HL109 series thermostats are suitable for heating and cooling systems installed in nearly any structure with outstanding temperature control precision. The H109 thermostats use NTC to detect the room temperature in order to properly adjust the heating and cooling system in order to achieve the set temperature and maintain it.
Features
● Elegant shape with highly reliable functionality
● Full control over fan coils, valves and dampers.
● Manual switch to select work state and knob to set the temperature
●Thermostats can be directly mounted on the wall or standard wiring box
Functions
● HEAT/COOL/OFF selected by switch
● Adjust setpoint by knob
● Speed selected by switch
● LED working state indicator
Specifications:
● Temperature Sensor: NTC
● Accuracy: ±1.5℃
● Set-point Range: 10~30℃
● Housing: PC+ABS(Fire retardant)
● Dimensions: 86×86×24mm(W×H×D)
● Installation: Standard 86 box surfacing mounting
● Hole Pitch: 60 mm Standard
● Self Power: <2W
● Power Supply: AC220V±10% 50/60Hz
● Rated Power: AC220V 1A(Resistive); AC220V 0.5A(Inductive)
● Wiring: 0.5-2.5mm2
● Ambient Conditions:0 ~45℃,5 ~95% RH (Non-condensate)
Beijing HaiLin Control Technology Inc.
