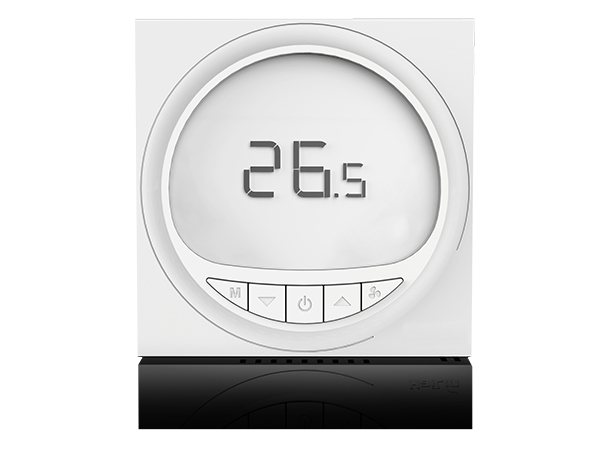

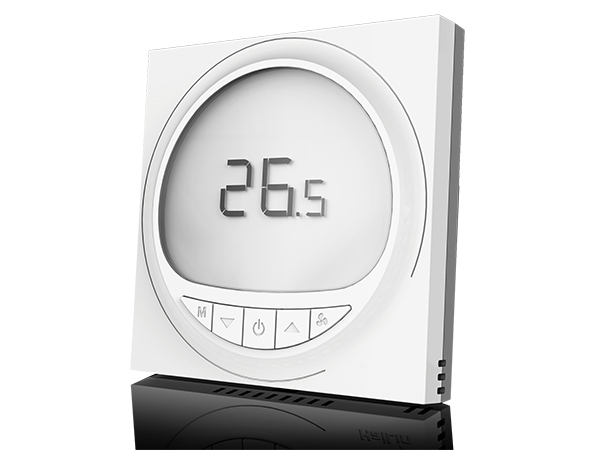

Luna Series(WiFi/Modbus optional) Digital Fan Coil Thermostat

This product has been discontinued and removed from our shelves.

Temperature Control Unit/ Digital Thermostat/ Microprocessor Thermostat

The Luna series thermostats are highly intelligent temperature control units with microprocessor temperature sensing and adjustment. The digital thermostat is designed to turn on/off fans, valves, dampers or electric heaters in fan coil units and heating applications.

Models are available for heating/cooling/ventilating control of 2-pipe or 4-pipe fan coil units.
The fan speed can be manually controlled by fan speed push button. It is wired to run high/medium/low speed continuously or to automatically change the fan speed as necessary.

Features
● Attractive modern styling makes this thermostat ideal for installation in occupied spaces
● Digital LCD display room temperature and set point
● Adjustable heating/cooling/ventilating mode control
● Adjustable manual 3-speed or automatic fan speed control and on/off control output for valves
● Infrared remote control available(optional)
● Backlight function available(optional)
● Thermostat can be mounted directly onto a wall or standard junction box
● Model available for 24Vac, 85-260Vac power input
● Reliable DC power supply by transformer
● Reliable relay output

Functions
● Cool, Heat and Vent.
● Room Temperature Setting
● Detect and Display Room Temperature
● Low Temperature Protection
● Backlight function available(optional)
● Manual/Auto Fan Speed Changeover
● Remote Control (Optional)
