Touch Screen Thermostat, A3100/A3101/A3102/A3103

This product has been discontinued and removed from our shelves.

Digital Thermostat/ Programmable Thermostat/ Electronic Thermostat

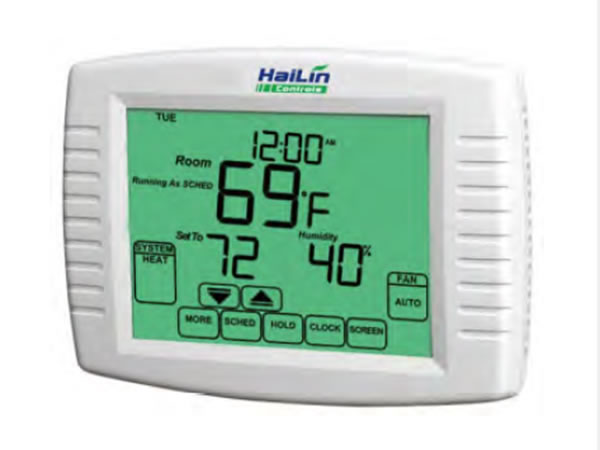

The A3100 touchscreen programmable thermostat is an incredibly easy to use 7 day programmable thermostat that provides universal system compatibility and precision comfort control.
Simple and easy-to-read installation menu on the LCD display provides an interactive interface when the user sets up, programs and operates the electronic thermostat. Features like variable touchscreen security to prevent tampering, temporary and vacation overrides, and filter change reminders provide added convenience.
A3101 Thermostats provide temperature control for gas, oil, electric furnace and heat pumps for 1 heat, 1 cool systems.
A3102 Thermostats provide temperature control for gas, oil, electric furnace and heat pumps for up to 3 heat, 2 cooling systems.
A3103 Thermostats provide temperature control for gas, oil, electric furnace and heat pumps for up to 3 heat, 2 cooling systems with humidity display.

Features
● Bright back-lit display with interactive touch screen
● Outdoor temperature display
● Compatible with Gas, Oil, Electric furnace, and Heat Pump Systems, 3 heat / 2 cool
● Power methods: Common wire with battery backup
● 7-Day Programmable
● Large, clear display with backlight shows the current and set temperature and time, even in the dark.
● Menu-driven programming make setup effortless
● Touchscreen interaction
● Real-time clock keeps time during power failures and automatically updates to daylight savings.
● Change/check reminders let you know when to service or replace filters or batteries.
● Various hold options allow you to override the program schedule, as desired
● Armchair programming allows you to remove the thermostat from the wall for programming.

Addtional Features Include
● Universal Dual-Powered choice of battery-powered or hardwired with battery backup, for all single stage applications (installer selectable)
● Selectable Energy Management Recovery
● Meets Energy Star specifications
● Fast (FA) or slow (SL) heating cycle anticipation
● Easy-to-wire terminal block
● B & O terminals
● Compressor lockout protection
● Millivolt compatible
● Electric heat option

The touchscreen thermostat is compatible with the Standard Systems listed below:
● 1 heat/1 cool conventional (factory setting)
● Single-stage heat pump (no auxiliary heat)
● Heat only conventional (no fan) also for 750mV
● Heat only conventional (with fan)
● Heat only (power to open and power to close zone valves or normally-open zone valves)
● Cool only conventional
● 2 heat/1 cool heat pump (with auxiliary heat)
● 2 heat/2 cool multistage conventional
● 2 heat/1 cool multistage conventional
● 1 heat/2 cool multistage conventional
● 2 heat/2 cool heat pump (no auxiliary heat)
● 3 heat/2 cool heat pump (with auxiliary heat)

Specifications
Setpoint Temperature Range 50°F ~ 99°F cooling; 40°F ~ 99°F heating
Rated Differential Heat 1°F; Cooll°F
Operating Ambient Temperature 32°F to 105°F
Operating Humidity Range 90% non-condensing maximum
Shipping Temperature Range -4*F to 150°F
Electrical Specifications
Power Supply 2 AA batteries and 24Vac 50/60Hz
Current Load 1.0 Amp (load per terminal)
1.5 Amps maximum load (all terminals combined)
Sensing Element NTC 100K
Terminals 0.5-2 sq. mm cable
Operating Temperature 32°F~113°F
Storage Temperature -4c F~13rF
Operating Humidity 5-90%
Dimension 152x114x29.8mm (HxWxD)
