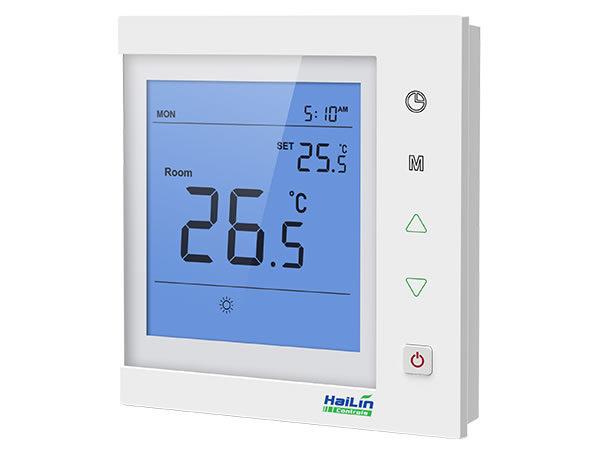

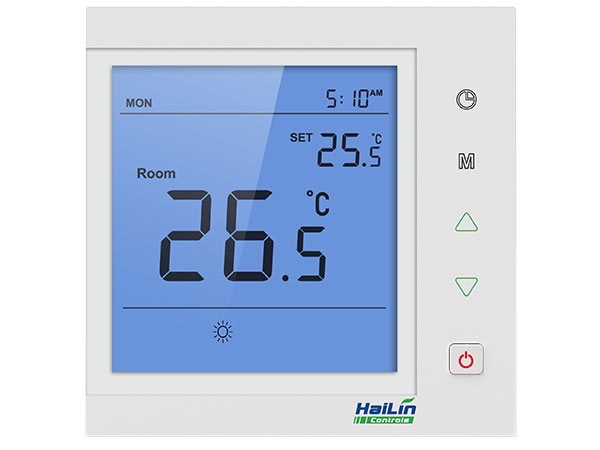

HA225/HA325 Digital Thermostat

This product has been discontinued and removed from our shelves.

Electronic Heating Thermostat/ Heater Thermostat/ Heating Unit Thermostat

Our HA225 digital thermostat is a heater thermostat equipped with a large, easy to read LCD display. It is suitable for heating systems in industrial, commercial and household applications. The electronic heating thermostat uses a microprocessor that is easy to program for highly accurate and energy saving temperature management.

Features
● Indoor temperature setting and detection
● Power-down memory function, low-temperature protection
● Timing boot and shutdown; 4-period programming function (-T, optional)
● Blue backlight(-L,optional)
● Key lock function (optional)

Display
● Output of temperature control valve
● Indoor temperature
● Pre-set temperature
● Clock, week

Technical Parameters
● Temperature sensing element: NTC
● Temperature control accuracy: ±1℃
● Temperature setting range: 5~35℃
● Display range: 0~55℃
● Working temperature: 0~45℃
● Moisture: 5~95% RH (no condensation)
● Touch swift
● Self - consumption power <1 W
● Power: AC85~260V 50/60Hz
● Terminals: able to connect 2×21.5mm2 or 1×2.5mm2 of wires
● Load current: 2 A (resistive load), 1A (inductive load)
● Housing: PC+ABS (retardant)
● Dimension: 90×90×14.5 mm (W×H×W)
● Hole spacing: 60 mm (standard)
● Protection grade: IP 30
