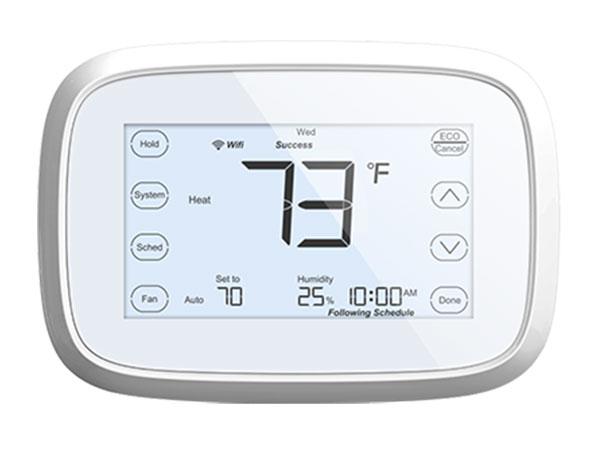

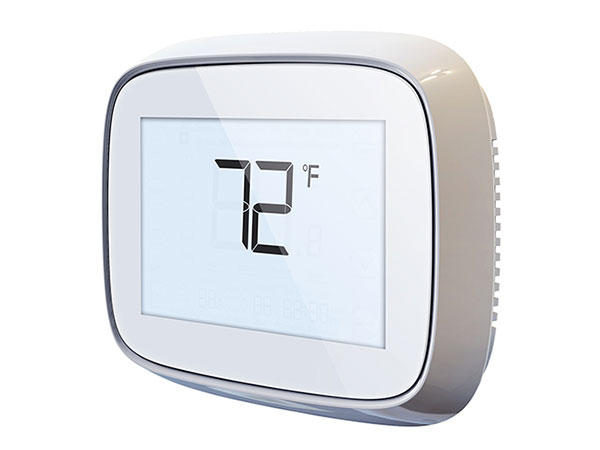

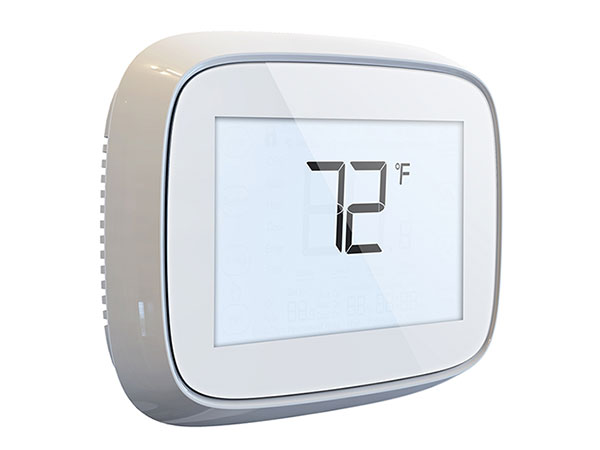

LAKE PRO Touchscreen programmable thermostat is an effortless, 7-day programmable thermostat that provides universal system compatibility, precise comfort control and is easy-to-program.
Simple and easy-to-read installation menu on LCD provides interactive interface when user sets up, programs and operates. Features like variable touchscreen security to prevent tampering, temporary and vacation overrides, and filter change reminders add convenience.
LAKE PRO Thermostats provide temperature control for gas, oil, electric furnace and heat pumps for 1 heat, 1 cool systems.
Features
● Large, clear LCD with backlight shows temperature, sets temperature and humidity.
● Menu-driven programming makes setup effortless.
● Beautiful ergonomic design is smart and sophisticated to match your customers’ lifestyle.
● Capacitance touchscreen interaction
● This thermostat can be connected to the internet to monitor and control your heating / cooling system.
● Compressor protection
Additional Features Include
● Universal dual-powered choice of battery-powered or hardwired with battery backup makes it applicable to all single stage applications (installer selectable).
● Selectable energy management recovery
● Meets ENERGY STAR specifications
● Fast (FA) or slow (SL) heating cycle anticipation
● Easy-to-wire terminal block
● B & O terminals
● Compressor lockout protection
● Millivolt compatible
● Electric heating option
Specifications
● Setpoint Temperature Range: cooling 50° F~99° F; Heating 40° F~99° F
● Rated Differential: Heating 1° F; Cooling 1° F
● Operating Ambient Temperature: 32° F to 122° F
● Operating Humidity Range: maximum 90% (non-condensing)
● Shipping Temperature Range: 14° F to 140° F
● Clock Accuracy: 4 +/- 2 minutes per month
● Cool Indication: Show “Cool On” on the screen when Cool is activated
● Heat Indication: Show “Heat On” on the screen when Heat is activated
● Auxiliary Heat Indication: Show “Aux On” on the screen when Auxiliary Heat is activated
Electrical Specifications
● Power Supply: optional 24V common connection
● Current Load:
1.0 Amps load (per terminal)
1.5 Amps maximum load (all terminals combined)
● Sensing Element: NTC 100K
● Terminals: 0.5~2 sq. mm cable
● Operating Temperature: 32° F~122° F
● Storage Temperature: 14° F~140° F
● Operating Humidity: 5~99%
● Dimension: 109 X 157.7 X 26.6mm (WxHxD)
