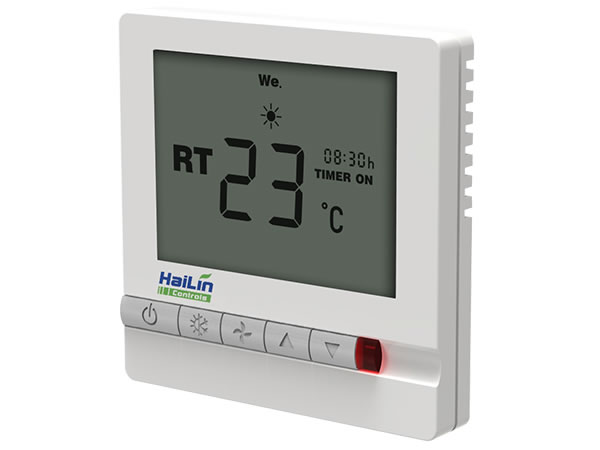

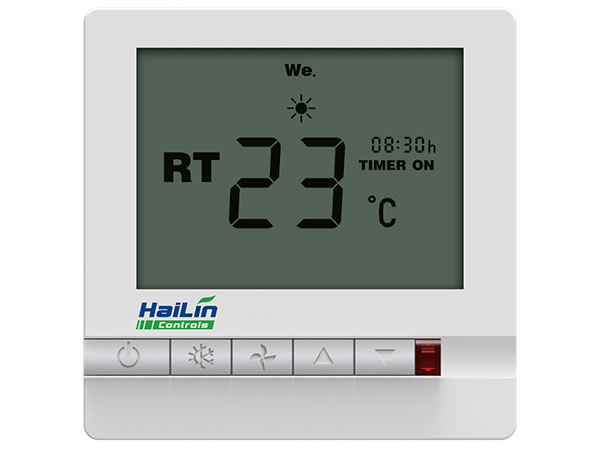

HL108 Digital Fan Coil Thermostat

Digital Thermostat/ LCD Display Thermostat/ Fan Coil Unit

The HL108 digital fan coil thermostat is a microprocessor based temperature control unit with a beautiful LCD display. These digital thermostat units perform on/off control for fans, valves, dampers or electric heaters in fan coil units and heating applications.
Models are available for heating/cooling/ventilating control for 2-pipe or 4-pipe fan coil units.
Fan speed can be manually set by the fan speed push button. The digital thermostat is wired to run high, medium, low and automatic speeds.

Features
● Attractive modern styling make these units suitable for high end home and public installation.
● Digital LCD display of ambient temperature and user selected temperature setting
● Adjustable heating/cooling/ventilating mode control
● Adjustable manual 3-speed or automatic fan speed control and on/off control output for valve
● Infrared remote control available(optional)
● Backlight function available(optional)
● Thermostat can be mounted directly onto a wall or standard junction box
● Model available for 24Vac, 85-260Vac, power input
● Reliable DC power supply by transformer
● Reliable output by relays

Functions
● Mode: Cool, Heat and Vent.
● Room Temperature Setting
● Detect and Display Room Temperature
● Low Temperature Protection
● Manual/Auto Fan Speed Changeover
● Backlight Function Available
● Remote Control (Optional)

Specifications:
●Temperature Sensor: NTC
● Accuracy:±1℃
● Set-point Range:5~35℃
● Display :LCD
● Button: Touch-button
● Power :AC85~260V,50/60Hz
● Switching Current Rating:2 A(Resistive),1 A(Inductive)
● Self Power: 1W
● Housing: PC+ABS(Fire retardant)
● Dimensions:86×86×13mm(W×H×D)
● Installation: Embedded mounting, Electrical size: 62*46*24.5(normal);48*48*25(European standard)
● Hole Pitch:60 mm (Standard)
● Wiring:0.5-2.5mm2
● Ambient Conditions:0~45℃,5~95% RH (Non-condensate)
