This product has been discontinued and removed from our shelves.

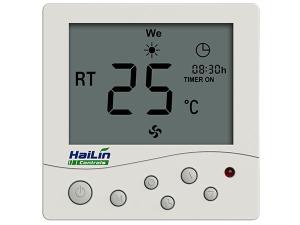

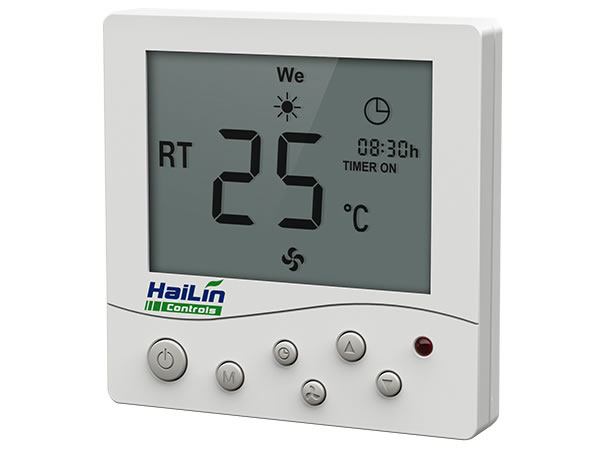

Microprocessor Thermostat/ Intelligent Thermostat/ LCD Display Thermostat
The HL2008 series thermostats are stand-alone microprocessor based thermostats with clear and easy to read LCD displays. The thermostats are designed for total temperature and fan control of heating and cooling systems.
Models are available for heating/cooling/ventilating control of 2-pipe or 4-pipe fan coil units.
The fan speed can be manually controlled by the fan speed control button. It is wired to run high/medium/low speed continuously or automatic fan speed adjustment.
Features
● Attractive modern styling makes this thermostat ideal for installation in occupied spaces such as offices and homes
● Digital LCD display of room temperature and user selected temperature
● Adjustable heating/cooling/ventilating mode control
● Adjustable manual 3-speed or automatic fan speed control and on/off control output for valve
● Models available for cycling fan control
● Thermostat can be mounted directly onto a wall or standard junction box
● Model available for 24Vac, 85-260Vac, power input
● Reliable DC power supply by transformer
● Reliable output by relays
Functions
● Cool, Heat and Vent.
● Room Temperature Setting
● Detect and Display Room Temperature
● Manual/Auto Fan Speed
● Low Temperature Protection
● Clock (Optional)
● Sleep function (Optional)
● Infrared Remote Control (Optional)
● Blue Backlight (Optional)
● 5+2 or 7 days 4 periods Programmable (Optional)
Specifications
● Temperature Sensor: NTC
● Accuracy:±1℃
● Set-point Range:5~35℃
● Display: LCD
● Button: Touch-key
● Power Supply:AC85~260V,50/60Hz
● Switch Current Rating:2 A(Resistive), 1 A(Inductive)
● Self Power:<1W
● Housing: PC+ABS(Fire retardant)
● Dimensions:86×86×13mm(W×H×D)
● Installation: Embedded mounting, electrical box size: 62*46*24.5(normal); 48*48*25(European standard)
● Hole Pitch:60 mm (Standard)
● Wiring:0.5~2.5mm2
● Ambient Conditions:0~45℃,5~95% RH(Non-condensate)
Beijing HaiLin Control Technology Inc.
