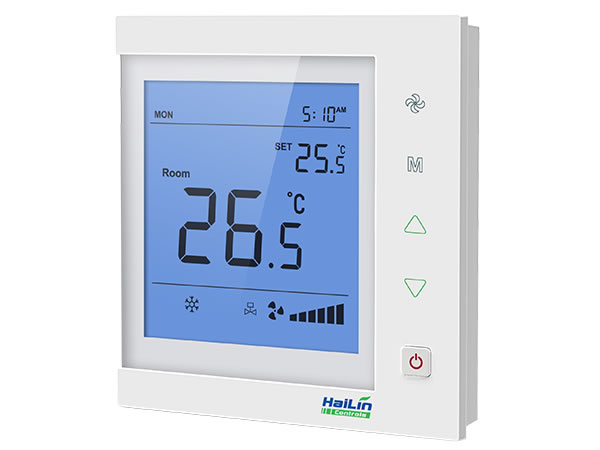

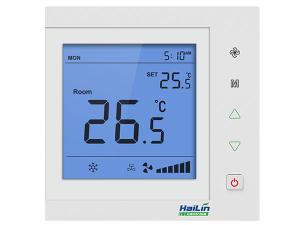

HL2025 Digital Fan Coil Thermostat

This product has been discontinued and removed from our shelves.

Digital Temperature Controller/ Fan Coil Thermostat/ Digital Thermostat

The HL2025 series thermostats are attractive and high efficiency fan coil control units designed for on/off control of fans, valves, dampers or electric heaters in air-conditioners and heating systems.

Models are available for heating/cooling/ventilating control of 2-pipe or 4-pipe fan coil units.
Fan speed can be set by the fan speed control button and it is wired to run high/medium/low speed for continuous operation as well as an automatically adaptable fan speed.

Features
● Attractive modern styling
● Digital LCD display of room ambient temperature and user selected temperature setting on demand
● Adjustable heating/cooling/ventilating mode control
● Adjustable manual 3-speed or automatic fan speed control and on/off control output for valve
● Model available for cycling fan control
● Thermostat mounted directly onto a wall or standard junction box
● Model available for , 85-260Vac, power input also
● Reliable DC power supply by transformer
● Reliable output by relays

Functions
● Cool, Heat and Vent.
● Room Temperature Setting
● Detect and Display Room Temperature
● Manual/Auto Fan Speed
● Low Temperature Protection
● Clock (Optional)
● Sleep (Optional)
● Infrared Remote Control (Optional)
● Blue Backlight (Optional)
● 7 day 4 period Programmable

Specifications
● Temperature Sensor: NTC
● Accuracy: ±1℃
● Set-point Range: 5~35℃
● Display: LCD
● Button: Touch Screen
● Self Power: <1W
● Housing: PC
● Power Supply: AC85~260V,50/60Hz
● Switch Current Rating: 2 A(Resistive),1 A(Inductive)
● Dimensions: 90×90×14.5mm(W×H×D)
● Installation: Embedded mounting, Electrical box size:62*46*24.5(normal); 48*48*25(European Standard)
● Hole Pitch: 60 mm(Standard)
● Wiring: 0.5~2.5mm2
● Ambient Conditions: 0~45℃,5~95% RH (Non-condensate)
