Heating system valve/ Heating Valve/ Floor Heating Valve
General

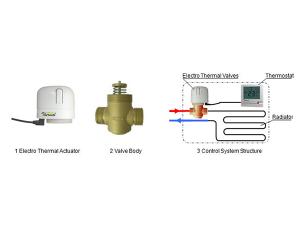

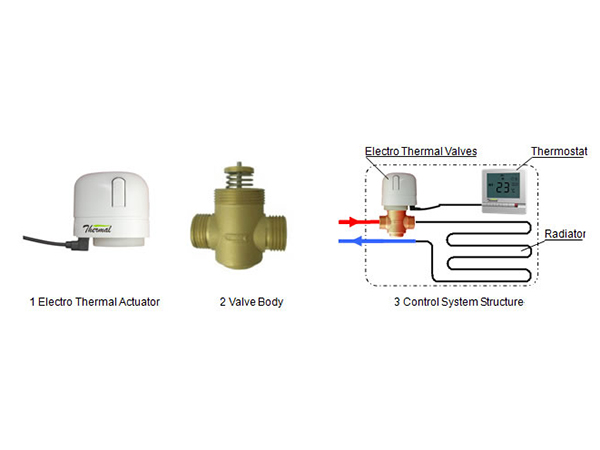

T41-V41 Series electro thermal valves consist of the T41 Series Electro Thermal Actuator and V41 Series Valve, which are widely applicable for floor heating control system. They are used to adjust the room temperature by controlling the open/close of the hot water pipes and they are very simple to install. They provide incredible performance, durability and energy savings.
Product Name | Electro-Thermal Actuator | ||
Model | T41-V24 | T41-V110 | T41-V220 |
Working Voltage | 24Vac±10%, 50/60HZ | 110Vac±10%, 50/60Hz | 220Vac±10%, 50/60Hz |
Enclosure | Material | Fire retardant ABS engineering plastic | |
Color | White | ||
Control Element | Electro-thermal wax sensor | ||
Connector to Valve Body | M30xl.5 | ||
Working Ambient Temperature | < 40°C | ||
First Fully Open Time | < 6min(25°C) | ||
Working Force | i80N | ||
Pull Stroke | a4.5mm | ||
Protection Class | IP40 | ||
Power Consumption | 1.1VA | ||
MaxJmpact Current | 0.7A | ||
Lead Wire | lm Length (2*core) | ||
Net Weight | 94g |
